ZL720 Vertikala sako formanta plenigantan sigelan pakmaŝinon por detergenta pulvoro
Enkonduko:

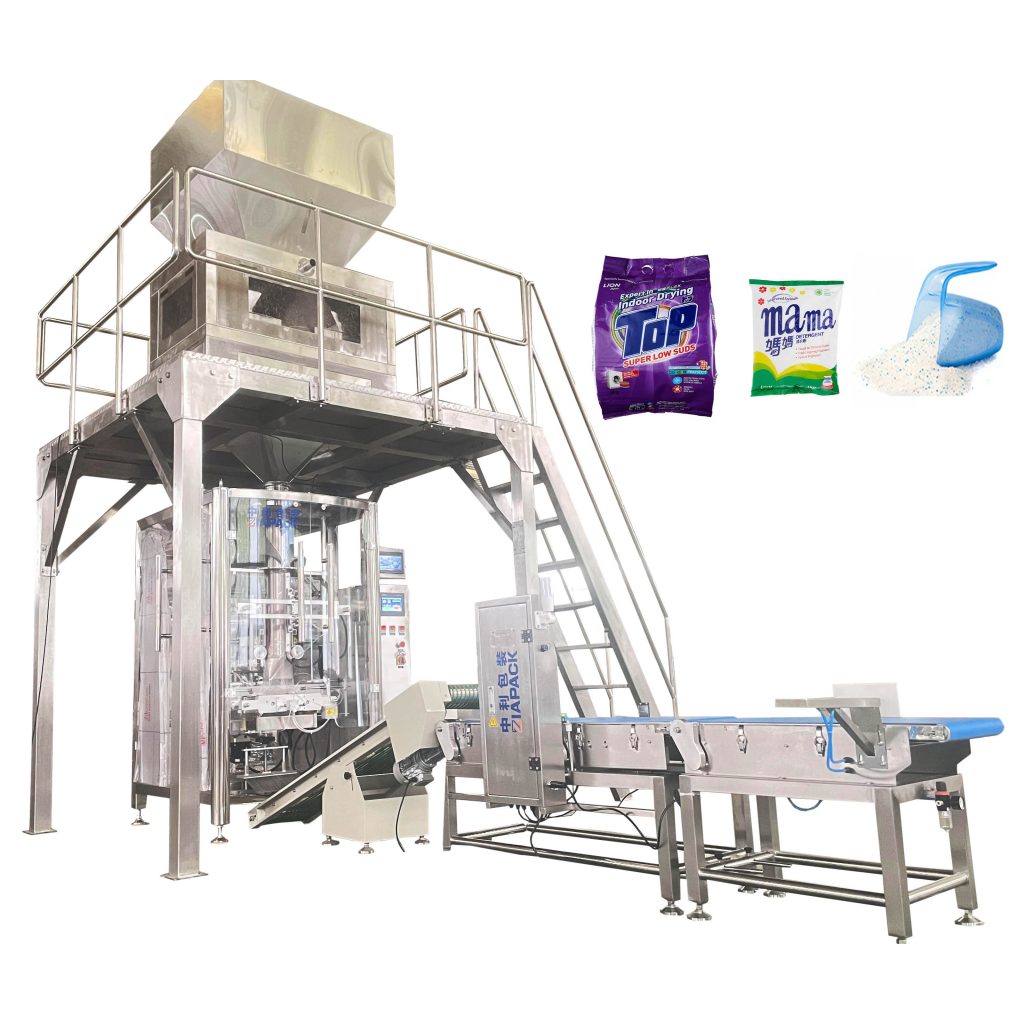

This machine unit is including one set ZL720 vertical bag forming filling sealing machine and one set ZLF-5000 Four bucket weighing machine ,One set DT3 vertical elevator and output conveyor machine .The whole machine unit can reach automatic bag making ,Product weighing ,product filling sealing and date coding .Widely using for packing slat ,detergent powder, rice ,bean and other granular product .
Maŝinaj detaloj:

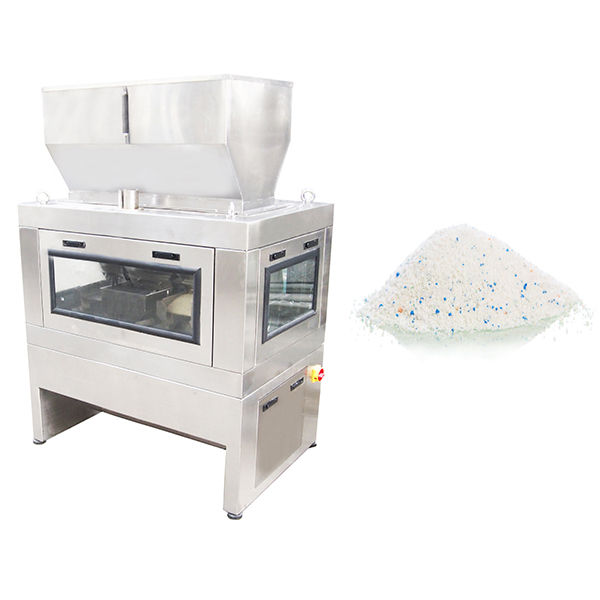

1, ZLF5000 Four buckets linear weighing machine
Enkonduko:
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods, Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
ZL720 vertical bag forming filling sealing Packaging machine
The whole machine made by Stainless Steel 304, This machine equipped with bag-making, cutting, code printing , etc. OMRON PLC and Touch Screen,Panasonic servo motor, Japanese Photo Sensor , Korean Air valve, etc..The film pulling system adopted servo motor driving making speed faster .
Teknikaj parametroj:
Weighing Range: 1000-3000g
Paka Rapido: 20-40 sakoj/min
Grandeco de sako: (80-460)*(100-350)mm (L*W)
Max film width:730mm
Postulo de kunpremita aero: 0.6Mpa 0.65m³/min
Ekstera diametro de la bobeno: 400 mm
Kerna interna diametro: 75mm
Maŝina pezo: 800 kg
Elektrofonto: 5.5kW 380V±10% 50Hz
